Valve body:
Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C...90°C
Rated pressure: PN20 Pipe connector: internal thread Ambient temp. range: −5…+60°C;0…90%RH Size: G1/2’’ -G2’’
Valve type: 2-way and 3-way Flow characteristic: equal percentage, on/off
Material
Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE
Ball: stainless steel brass stem: EPDM
Valve connector: PC Valve spindle: aluminum alloy
Description

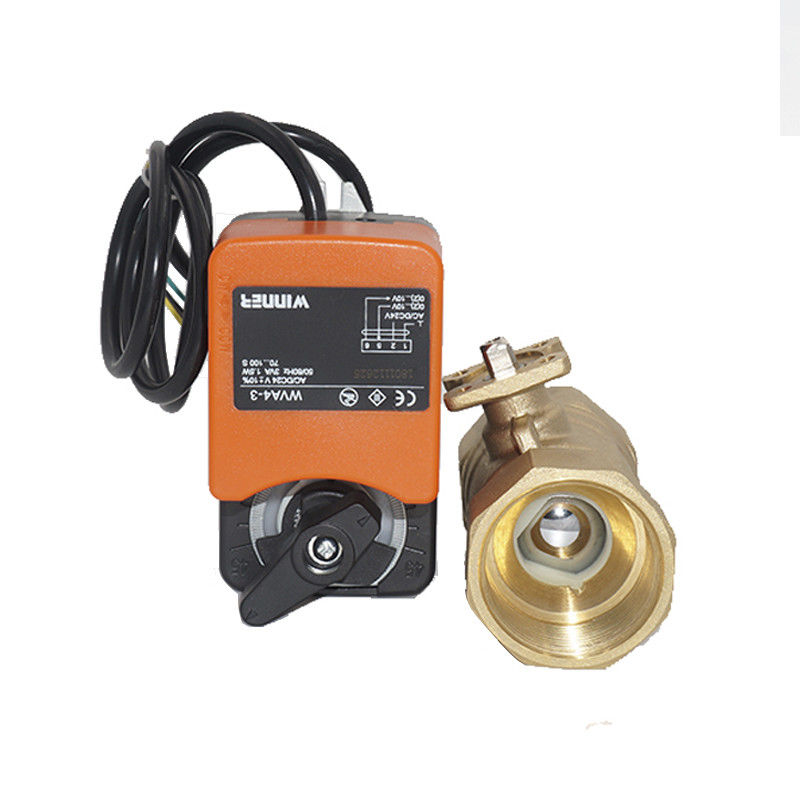

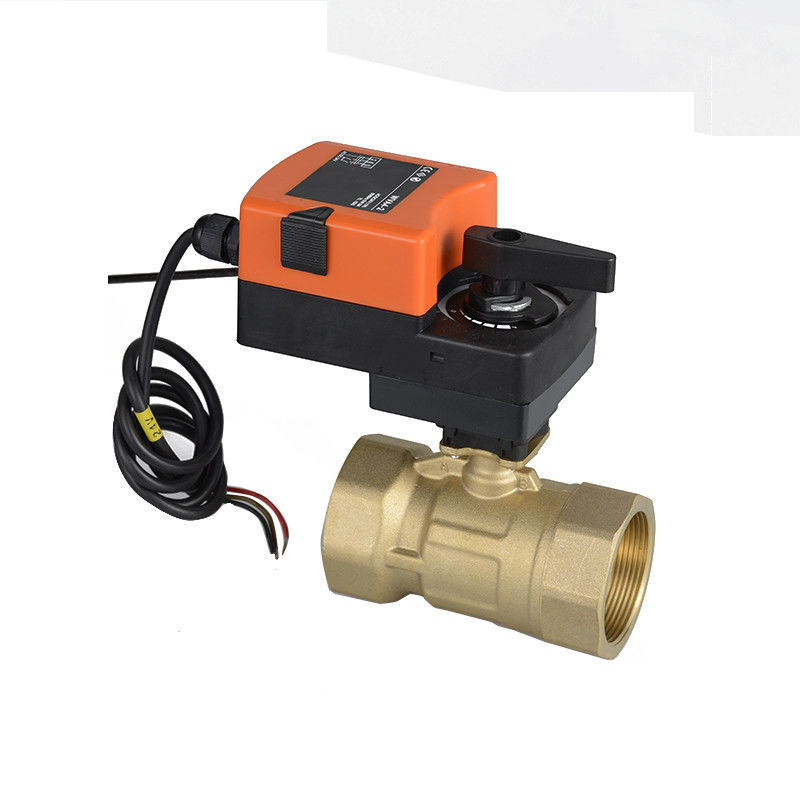

control ball valve consists of WAV4-… series rotary actuator and WCBS… series ball valve. Equal percentage flow characteristic guarantees the valve performances of stability. Control ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.
Application
HVAC system
Heating system
Water treatment system
Industrial equipments
Service
1. Provide your technical requirements and drawings
2. Get primary reply from us within 12 hours
3. Get technical solution and quotation from us within 24 hours
4. Technical solution and quotation confirmation
5. Provide samples if necessary
6. Contract review and signing
7. Arrange production and shipment
8. After sales service
Operational mode
control ball valve is motor-operated by a type of WVA4-1…, WAV4-2…, and WAV4-3… actuator. The actuator is controlled by a modulating on/off , 3-point or proportional control system and move the ball of the valve, to the opening position dictated by the control signal.
|
Model No. |
DN(mm) |
Inch |
Kvs(m3/h) |
Pvmax (MPa) |
Ps (KPa) |
|
WCBS215 |
DN15 |
1/2” |
6.3 |
2.5Mpa |
1400 |
|
WCBS220 |
DN20 |
3/4’’ |
6.3 |
2.5Mpa |
1400 |
|
WCBS225 |
DN25 |
1” |
10 |
2.5Mpa |
1400 |
|
WCBS250 |
DN50 |
2” |
43 |
2.5Mpa |
1400 |
|
WCBS315 |
DN15 |
1/2” |
6.3 |
2.5Mpa |
1400 |
|
WCBS320 |
DN20 |
3/4’’ |
6.3 |
2.5Mpa |
1400 |
|
WCBS325 |
DN25 |
1” |
10 |
2.5Mpa |
1400 |
|
WCBS350 |
DN50 |
2” |
43 |
2.5Mpa |
1400 |
Actuator
WVA4-3… 24VAC/DC±15%,0-10V/4-20mA
Function (3-point,or proportional type)
The actuator is controlled by a modulating on/off, 3-point, and proportional control signal, using high transmitting ratio gear drive to fix and lock.
|
Model No. |
Working Voltage |
Actuator type |
Output torque |
Consumption |
Valve body |
|
WVA4-304 |
24VAC/DC±15% |
3-point |
0-10V |
6VA |
DN25,DN20,DN15 |
|
WVA4-306 |
0(2)-10VDC&(0)4-20mA |
DN50,DN40,DN32, |
|||
|
WVA4-310 |
0(2)-10VDC&(0)4-20mA |
DN50 |
Connector
|
Model No |
Commodity |
Application |
Actuator |
Valve body |
Spindle |
|
WCBV-1 |
Connector
|
Be used to connect the actuator and the valve body |
WVA4-106,WVA4-206 WVA4-306,WVA4-110 WVA4-210,WVA4-310 |
WCBV232 WCBV240 |
WCBV-2
|
|
WCBS-1 |
WVA4-104,WVA4-204 WVA4-304,WVA4-106 WVA4-206,WVA4-306 WVA4-110,WVA4-210 WVA4-310 |
WCBS232,WCBS240 WCBS250,WCBS332 WCBS340,WCBS350 |
WCBS-2 WCBS-3
|
