Surface Treatment
We offer the following processes to choose:
1. Mechanical Polishing (MP) to improve brightness (gloss, matte)
2. Acid Cleaning for Anti-corrosion
3. Electrolysis Polish (EP) to improve surface smoothness
4. Custom Process: Bright Annealing treatment eliminate strees to improve toughness
Application
1. HVAC system
2. Water treatment system
3. Heating syste
4. Industrial equipments
5. Chemical process
6. Agricultural irrigation
7. Replacing solenoid valve, particularly when solenoid cannot work reliably .It can be installed at any angle and direction,and can work in moist conditions.
8. Regular watering the flowers, Timing humidification ,Air compressor drain at regular time.
Technical Parameter
Medium: cold/hot water, with 50% glycol
Temperature of medium: 2°C...90°C
Adissable pressure:2.0Mpa
Cable Length: 0.5m or 1.5m
Environment Temperature:-20~65 Celsius
Protect rank: IP54/IP55

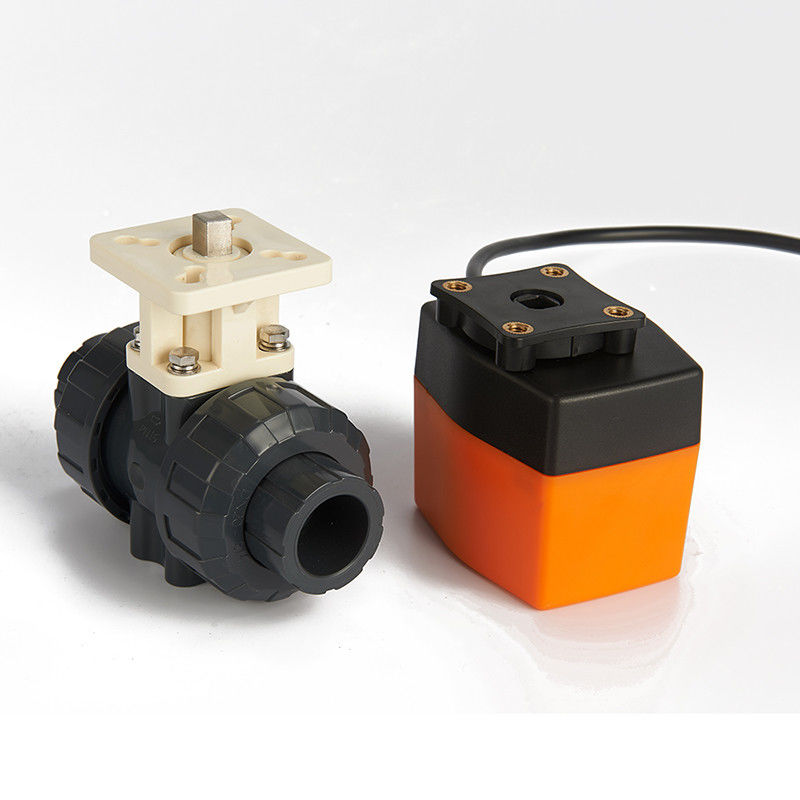

Package Include:
1x ball valve
1x Actuator Motor
1x Instruction manual
WRA-63.... A
AC230/110/24V, 50/60Hz, on/off
| SIZE |
DN15 1/2'' |
DN20 3/4'' |
DN25 1'' |
||
| d | 13 | 18 | 23 | ||
| DIN dl | 20 | 25 | 32 | ||
| JISdl | 22 | 26 | 32 | ||
| ANSIdl | 21.34 | 26.67 | 33.4 | ||
| BSdl | 21.2 | 26.6 | 33.4 | ||
| D | 56 | 64 | 73 | ||
| Dl | 31 | 36 | 47 | ||
| L | 120 | 128 | 144 | ||
| Ll | 23 | 25 | 28 | ||
| H | 95 | 101 | 133 | ||
| H3 | 29.5 | 33.5 | 39 | ||
| H4 | 28 | 30 | 34 | ||
| H5 | 151 | 153 | 159 | ||
| H6 | 166 | 168 | 174 |
| NO. | Part | Material | QTY | |
| 1 | Body | U-PVC,C-PVC,PP | 1 | |
| 2 | Ball | U-PVC,C-PVC,PP | 1 | |
| 3 | Carrier O-Ring | EPDM,FPM | 1 | |
| 4 | Seal Carrier | U-PVC,C-PVC,PP | 1 | |
| 5 | Union | U-PVC,C-PVC,PP | 2 | |
| 6 | End Connector | U-PVC,C-PVC,PP | 2 | |
| 7 | Seal Seat | PTFE | 2 | |
| 8 | Dampener Seal | EPDM,FPM | 2 | |
| 9 | End Connestor O-Ring | EPDM,FPM | 2 | |
| 10 | Stem O-Ring | EPDM,FPM | 2 | |
| 11 | Stem | U-PVC,C-PVC,PP | 1 | |
| 14 | Mounting Clamp | PVC-M,SUS304 | 1 | |
| 15 | Actuator Coupling Bush | PVC-M,SUS304 | 1 | |
| 16 | Bolt | SUS 304 | 4 |
