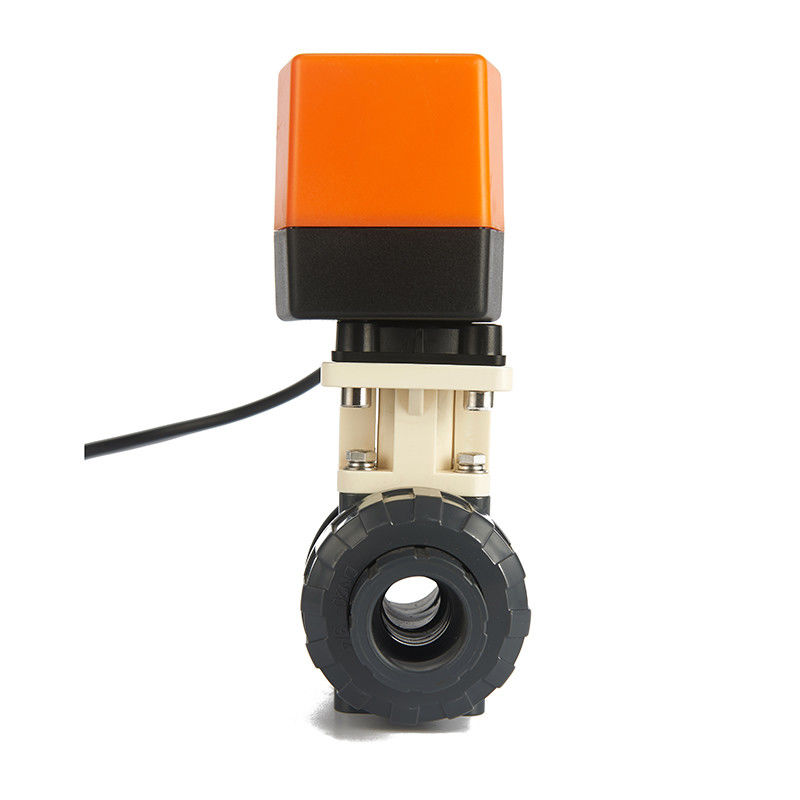

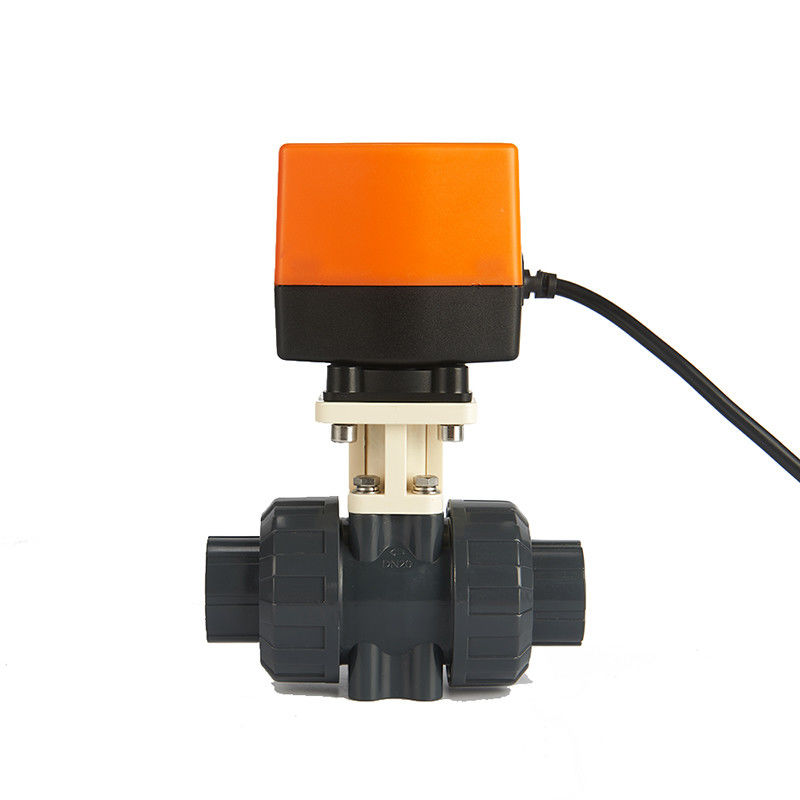

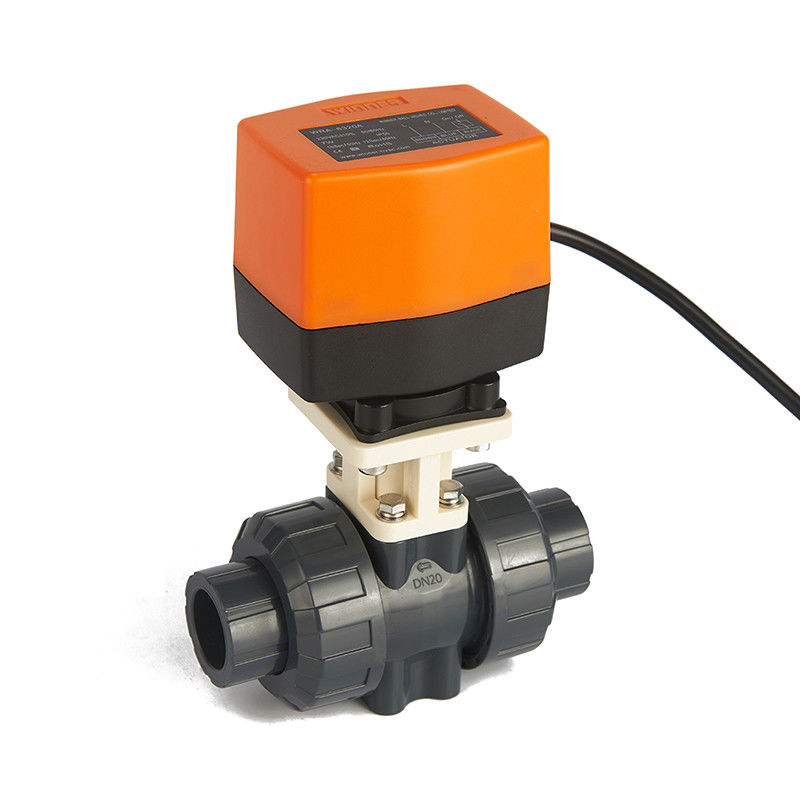

2 Way Electric Actuator Ball Valve 3/4 inch PVC Valves Water Control Motorized Plastic PVC Ball Valve
How do we control the quality of machining
1. High-precision CNC lathe processing parts.
2. Advanced Milling Machines
3. UT Inspection to ensure welding quality
4. Weld Polishing
5. 100% Appearance & Size Inspection online (thickness, roundness, etc.)
6. Size & Appearance Shaping
Technical Parameter
Medium: cold/hot water, with 50% glycol
Temperature of medium: 2°C...90°C
Adissable pressure:2.0Mpa
Cable Length: 0.5m or 1.5m
Environment Temperature:-20~65 Celsius
Protect rank: IP54/IP55

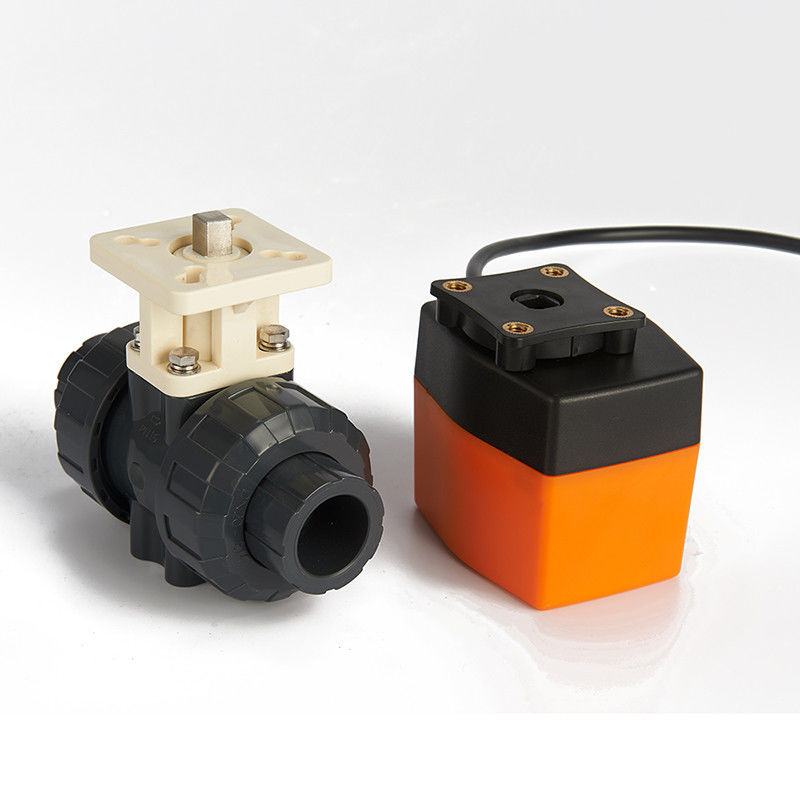

Package Include:
1x ball valve
1x Actuator Motor
1x Instruction manual
Application
1. HVAC system
2. Water treatment system
3. Heating syste
4. Industrial equipments
5. Chemical process
6. Agricultural irrigation
7. Replacing solenoid valve, particularly when solenoid cannot work reliably .It can be installed at any angle and direction,and can work in moist conditions.
8. Regular watering the flowers, Timing humidification ,Air compressor drain at regular time.

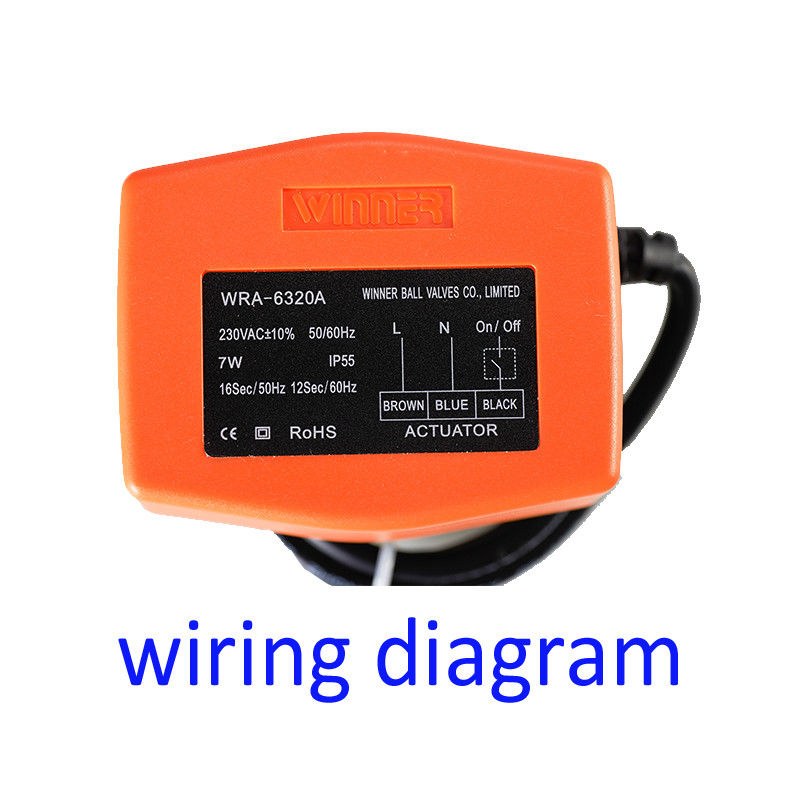

WRA-63.... A
AC230/110/24V, 50/60Hz, on/off
| SIZE |
DN15 1/2'' |
DN20 3/4'' |
DN25 1'' |
|
|
| d | 13 | 18 | 23 | ||
| DIN dl | 20 | 25 | 32 | ||
| JISdl | 22 | 26 | 32 | ||
| ANSIdl | 21.34 | 26.67 | 33.4 | ||
| BSdl | 21.2 | 26.6 | 33.4 | ||
| D | 56 | 64 | 73 | ||
| Dl | 31 | 36 | 47 | ||
| L | 120 | 128 | 144 | ||
| Ll | 23 | 25 | 28 | ||
| H | 95 | 101 | 133 | ||
| H3 | 29.5 | 33.5 | 39 | ||
| H4 | 28 | 30 | 34 | ||
| H5 | 151 | 153 | 159 | ||
| H6 | 166 | 168 | 174 |

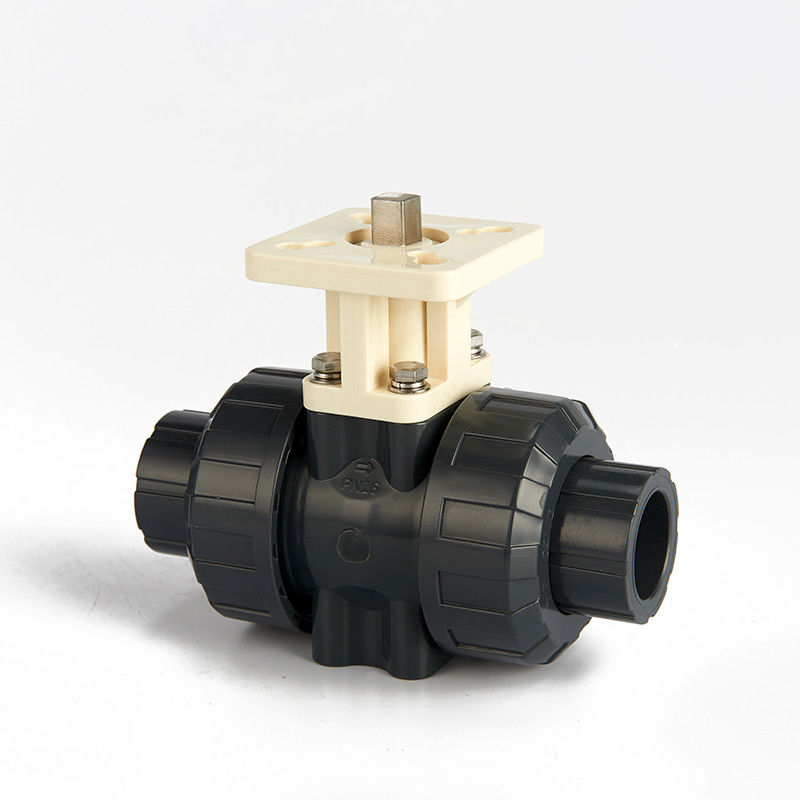

| NO. | Part | Material | QTY | |
| 1 | Body | U-PVC,C-PVC,PP | 1 | |
| 2 | Ball | U-PVC,C-PVC,PP | 1 | |
| 3 | Carrier O-Ring | EPDM,FPM | 1 | |
| 4 | Seal Carrier | U-PVC,C-PVC,PP | 1 | |
| 5 | Union | U-PVC,C-PVC,PP | 2 | |
| 6 | End Connector | U-PVC,C-PVC,PP | 2 | |
| 7 | Seal Seat | PTFE | 2 | |
| 8 | Dampener Seal | EPDM,FPM | 2 | |
| 9 | End Connestor O-Ring | EPDM,FPM | 2 | |
| 10 | Stem O-Ring | EPDM,FPM | 2 | |
| 11 | Stem | U-PVC,C-PVC,PP | 1 | |
| 14 | Mounting Clamp | PVC-M,SUS304 | 1 | |
| 15 | Actuator Coupling Bush | PVC-M,SUS304 | 1 | |
| 16 | Bolt | SUS 304 | 4 |
