adjustable pressure reducing valve

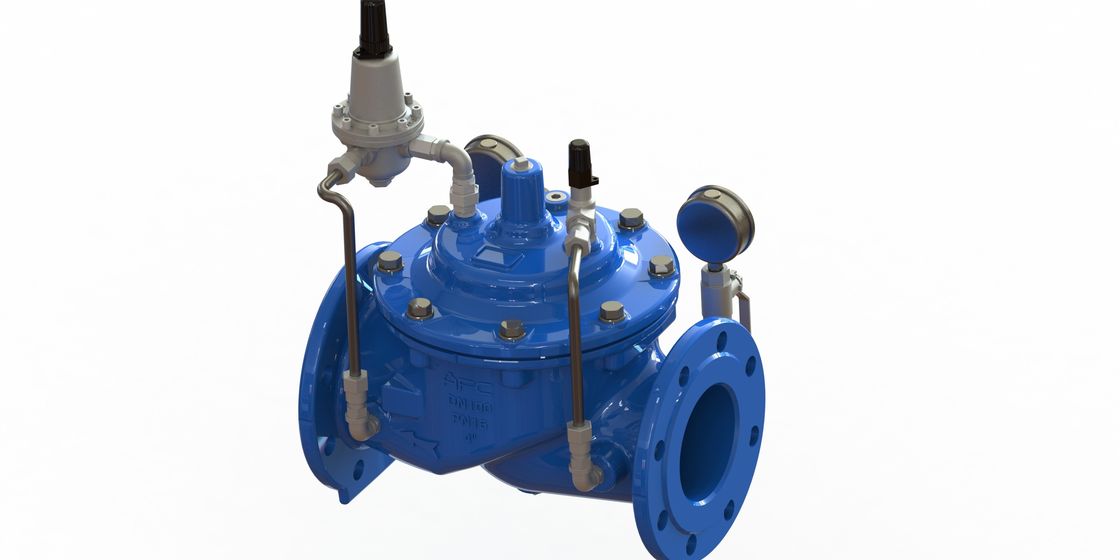

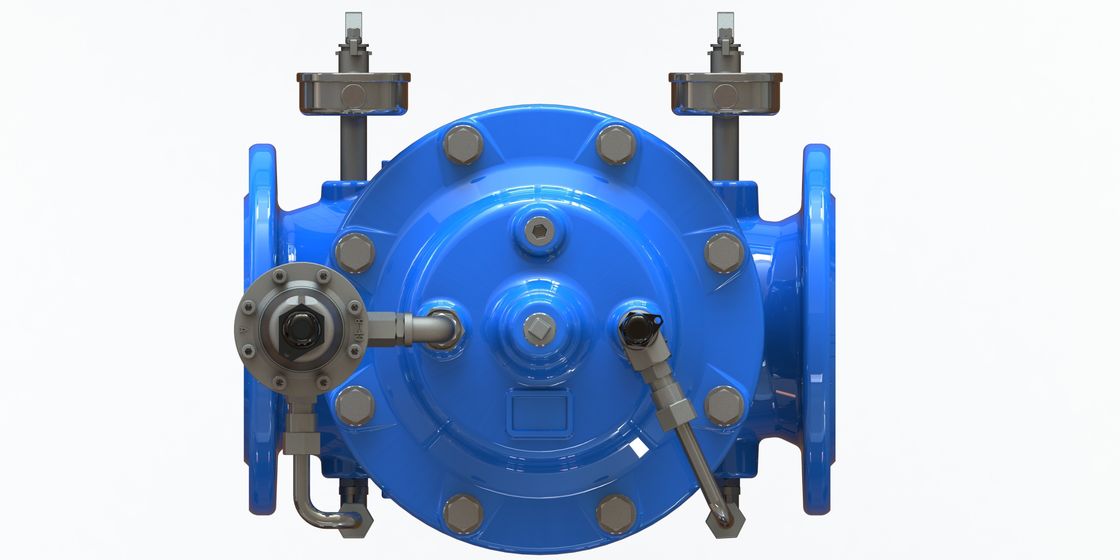

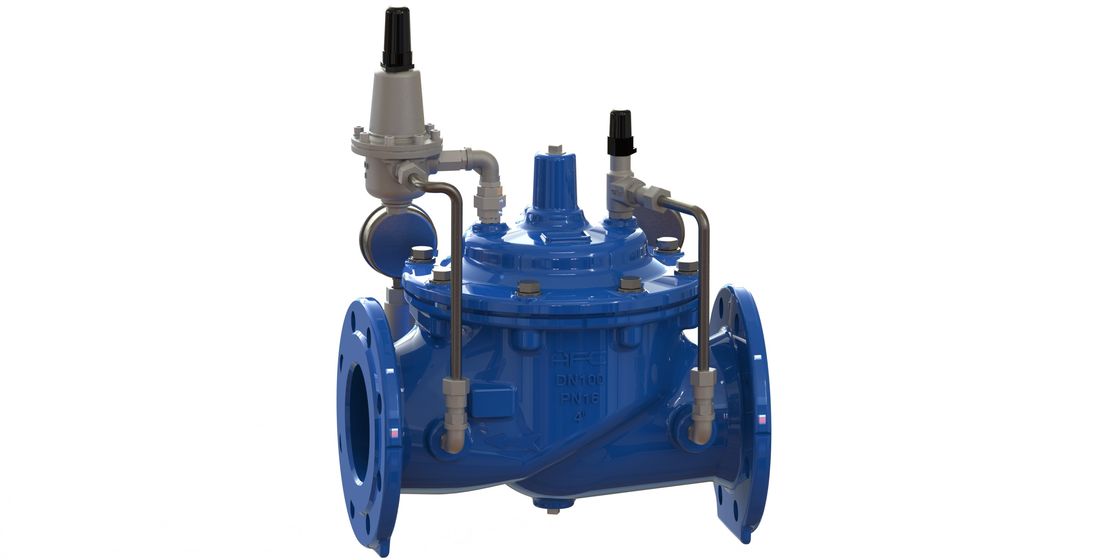

A200 Water Pressure reducing valve EPOXY Coated Ductile Iron Main Valve SS304 Pilot​

Description:

A200 maintains a preset downstream pressure, regardless of upstream pressure or flow rate fluctuation.
The main valve is controlled by a 2-way pilot valve (creating a minimal differential in open position) to control the water in upper chamber to regulate the outlet pressure.

Feature:

•  Accurate, stable control from no-flow to full flow
• Simple and reliable design
• Low flow rate and cavitation can be used with Anti-cavitation kit.

How do we control the quality of machining

In production, we demand not only quantity but also quality.

How do we ensure finished product quality (FQC inspection)

1. Visual Inspection

2. Material Grade Measurement

3. Dimension Inspection

4. Roughness Detection

5. Roughness Detection

6. Leakage Test

Usage Fields:

For water system, irrigation system.

Technical Data:

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

DN400-DN800
