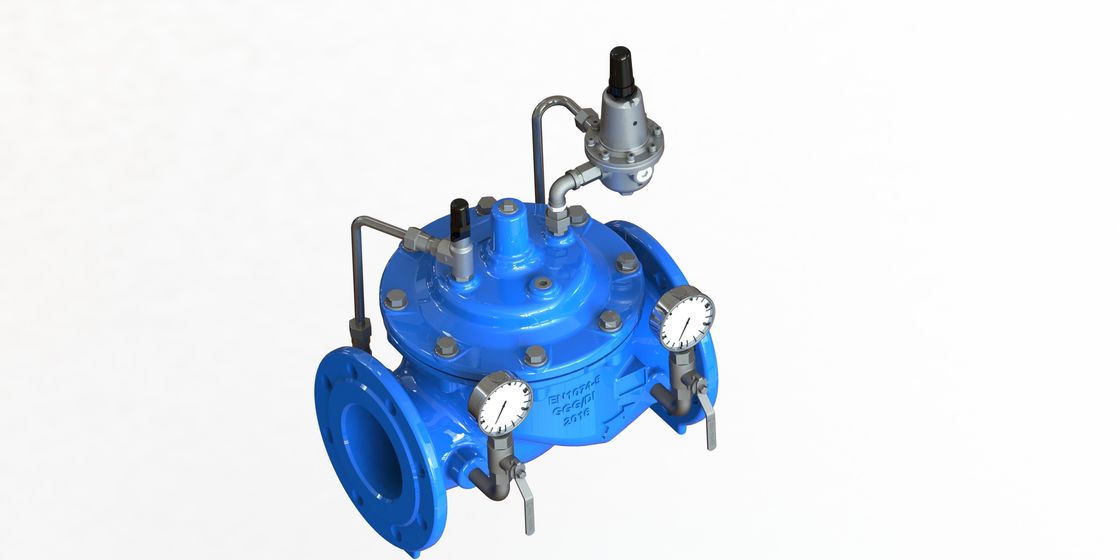

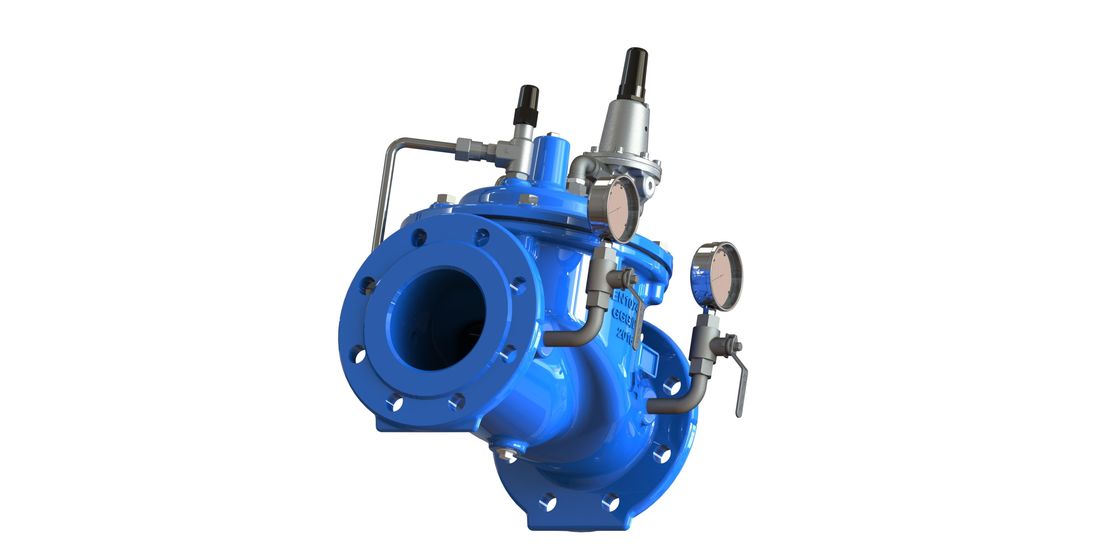

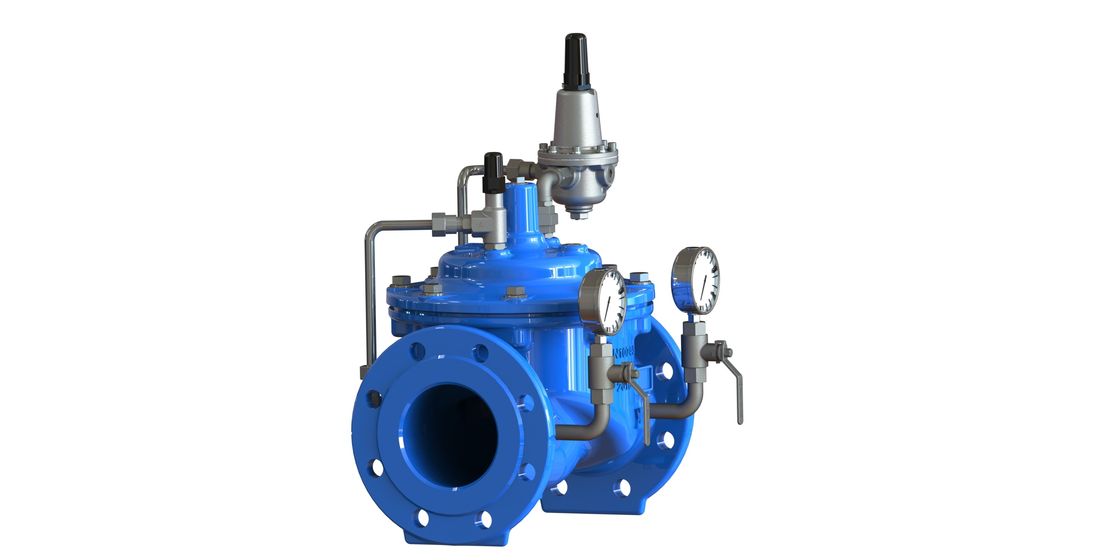

DN50 - DN800 Water Pressure Reducing Valve With Ductile Iron Body
-
Highlight
water pressure control valve
-
MaterialDuctile Iron GJS500-7
-
Pilot MaterialSS304
-
TubingSS304
-
CoatingEPOXY
-
DiaphragmNylon Reinforcement With EPDM
-
RubberEPDM
-
Place of OriginChina
-
Brand NameOEM
-
CertificationEN1074-5
-
Model NumberA200
-
Document
-
Minimum Order Quantity1
-
PriceNegotiable
-
Packaging DetailsPlywood Cases
-
Delivery Time15-60 Days
-
Payment TermsL/C, T/T
-
Supply AbilityBased On Order
DN50 - DN800 Water Pressure Reducing Valve With Ductile Iron Body
Stable Down Stream Pressure SS304 Pilot Ductile Iron Main Valve EPOXY Coated A200 Water Pressure Reducing Valve
Feature:
• Constant downstream pressure in water supply
• Low head loss in fully open position.
• Safe operation, no energy supply needed
• Robust and reliable
How do we ensure finished product quality (FQC inspection)
1. Visual Inspection
2. Material Grade Measurement
3. Dimension Inspection
4. Roughness Detection
5. Roughness Detection
6. Leakage Test
Description:
A200 maintains a preset downstream pressure, regardless of upstream pressure or flow rate fluctuation.
The main valve is controlled by a 2-way pilot valve (creating a minimal differential in open position) to control the water in upper chamber to regulate the outlet pressure.
Service Fields:
For water system, irrigation system.
Technical Data:
| Size | DN50-DN800 |
| Working Temperature | - 10C- 80C |
| Flange | AISI B16.1 Or PN16 |
| Flow Media | Clean Water |
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1
Materials And Dimension
DN50-DN350
DN400-DN800
