adjustable pressure reducing valve

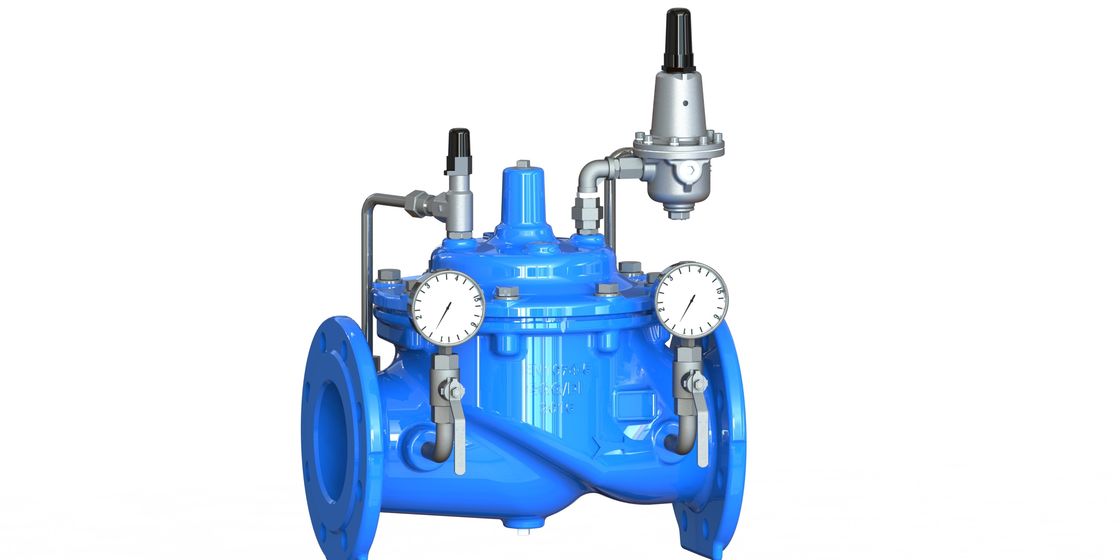

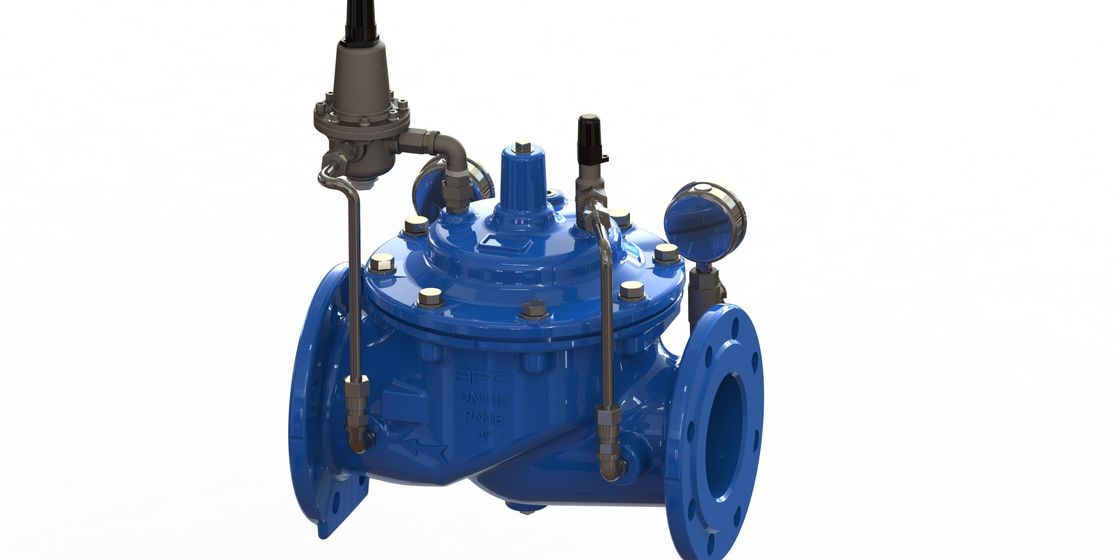

Anti cavitation design EPOXY Coated A200 Water Pressure Reducing Valve Ductile Iron Main Valve SS304 Pilot

Feature:

In-line serviceable – Easy maintenance

Obstacle free, full bore

Service Fields:

For water system, irrigation system.

Forming Machine Process

1. CNC Lathe Processing

2. High precision CNC machining center processing

3. General lathe processing

4. The machine punch the product parts

5. Cold Forming Molding

6. Welding Assembly

Technical Data:

Description:

A200 maintains a preset downstream pressure, regardless of upstream pressure or flow rate fluctuation.
The main valve is controlled by a 2-way pilot valve (creating a minimal differential in open position) to control the water in upper chamber to regulate the outlet pressure.

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

DN400-DN800
