adjustable pressure reducing valve

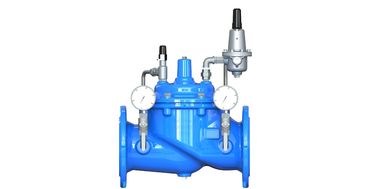

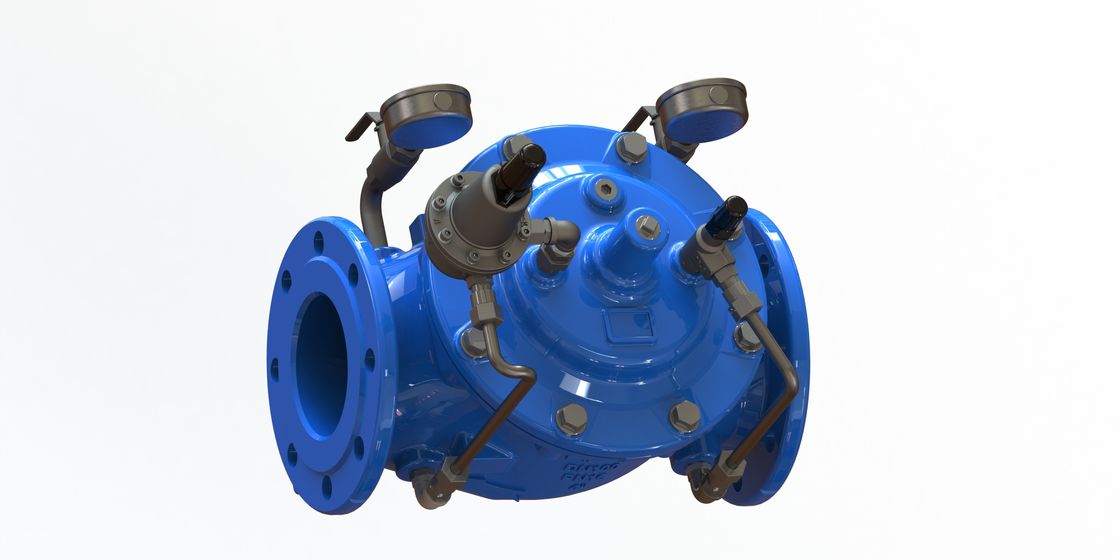

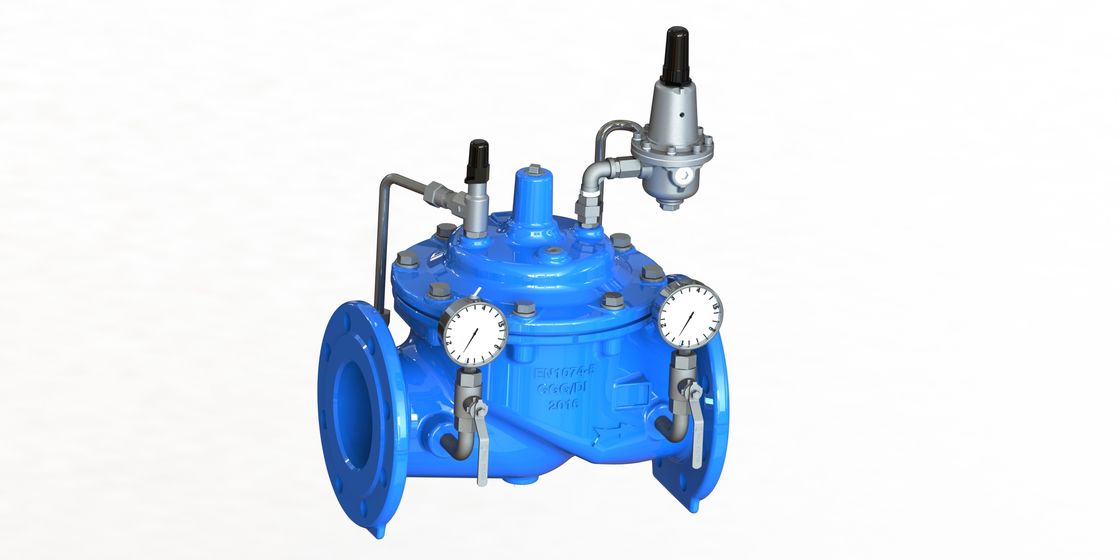

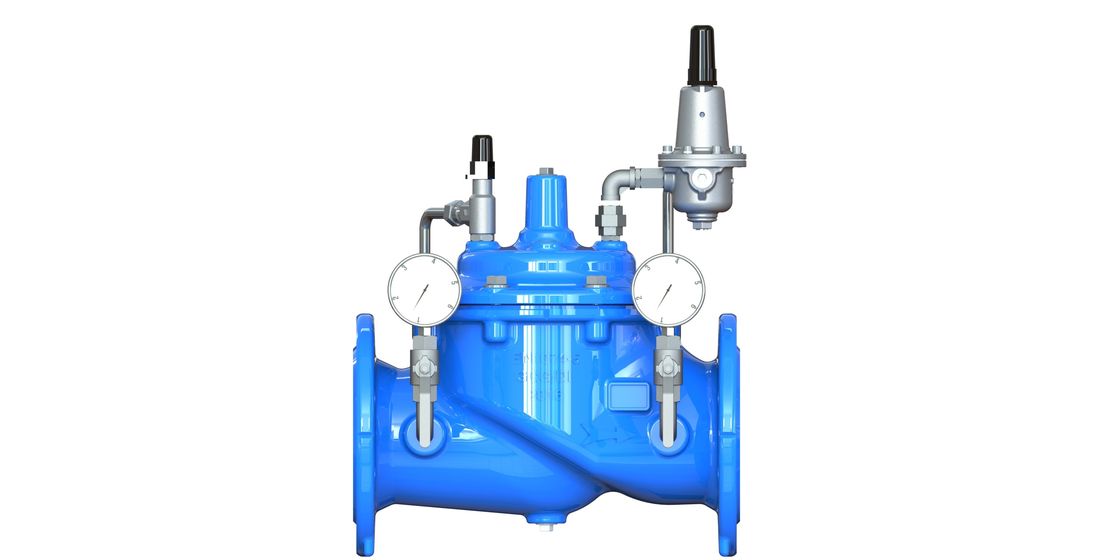

SS304 Pilot Ductile Iron Main Valve EPOXY Coated Stable Down Stream Pressure A200 Water Pressure Reducing Valve​

Technical Data:

1. Provide your technical requirements and drawings
2. Get primary reply from us within 12 hours
3. Get technical solution and quotation from us within 24 hours
4. Technical solution and quotation confirmation
5. Provide samples if necessary
6. Contract review and signing
7. Arrange production and shipment
8. After sales service

Description:

A200 continuously maintains the constant downstream pressure with an accurcy of ± 5%. If there is no consumption, the valve is 100% drop-tight (clean water provided). The downstream pressure will rise by approx. less than 0.5 bar under conditions between minimum an zero consumption.

Feature:

• Operates automatically off line pressure.
• Low head loss in fully open position.

• Easily maintained without removal from the line.

• Safe operation, no energy supply needed

• Robust and reliable

• Replaceable seat ring

Service Fields:

For water system, irrigation system.

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

DN400-DN800
