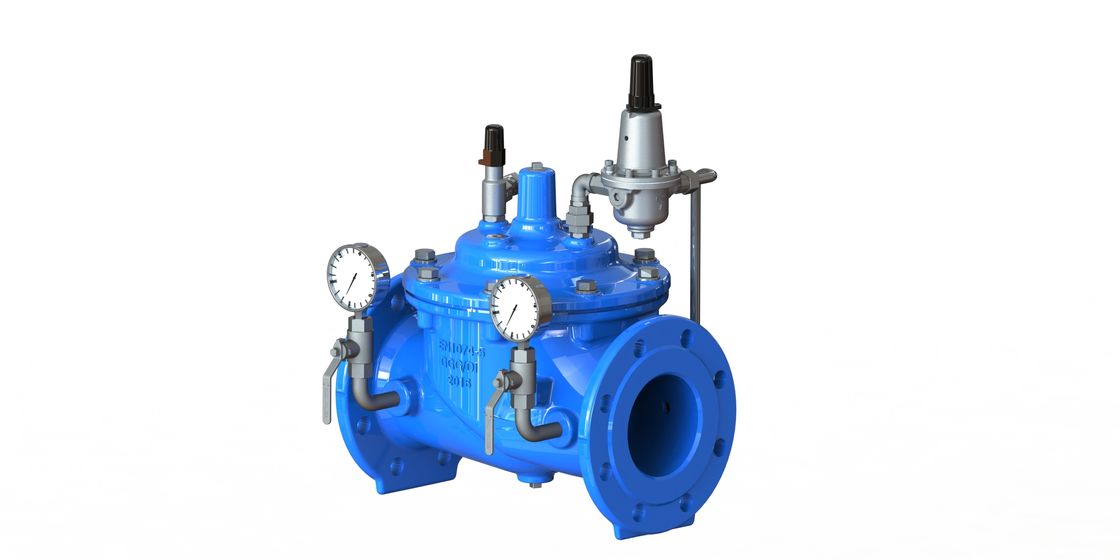

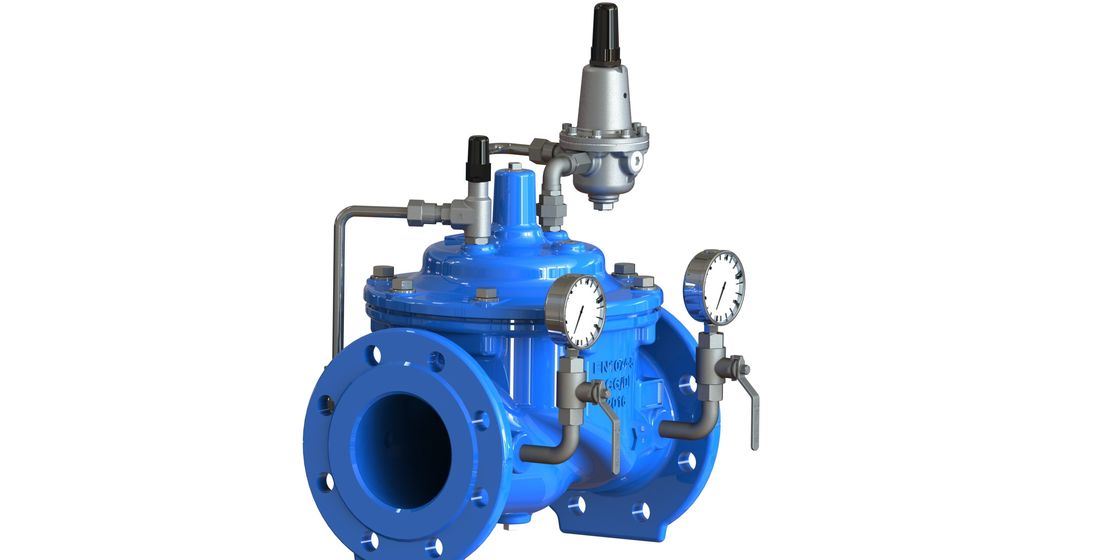

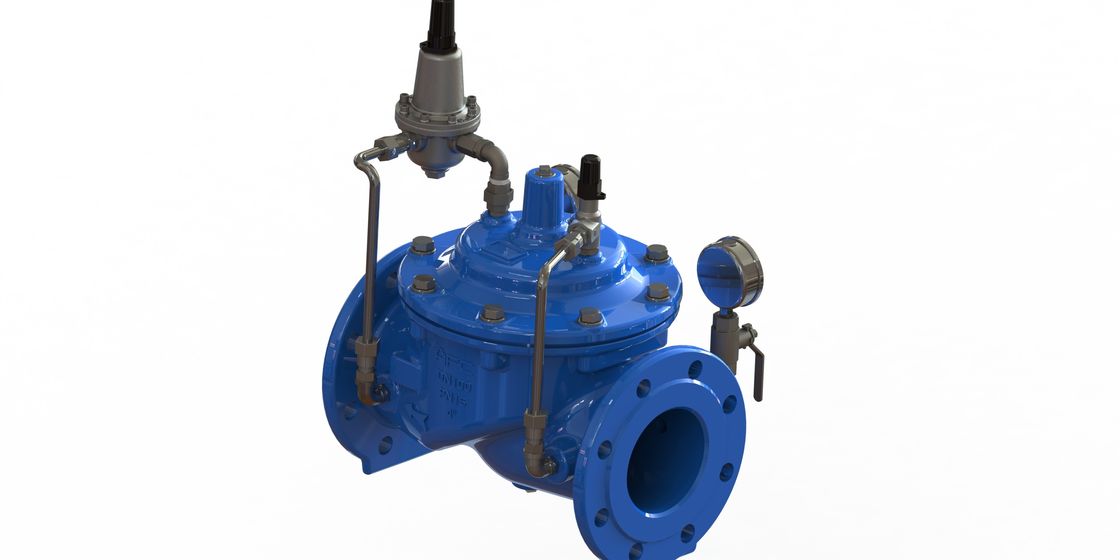

SS304 Pilot A200 PRV EPOXY Coated Ductile Iron Main Valve
Feature:
• Constant downstream pressure in water supply
• Low head loss in fully open position.
• Safe operation, no energy supply needed
• Robust and reliable
Service Fields:
For water system, irrigation system.
Surface Treatment
We offer the following processes to choose:
1. Mechanical Polishing (MP) to improve brightness (gloss, matte)
2. Acid Cleaning for Anti-corrosion
3. Electrolysis Polish (EP) to improve surface smoothness
4. Custom Process: Bright Annealing treatment eliminate strees to improve toughness
Description:
A200 continuously maintains the constant downstream pressure with an accurcy of ± 5%. If there is no consumption, the valve is 100% drop-tight (clean water provided). The downstream pressure will rise by approx. less than 0.5 bar under conditions between minimum an zero consumption.
Technical Data:
| Size | DN50-DN800 |
| Working Temperature | - 10C- 80C |
| Flange | AISI B16.1 Or PN16 |
| Flow Media | Clean Water |
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1
Materials And Dimension
DN50-DN350
DN400-DN800
