adjustable pressure reducing valve

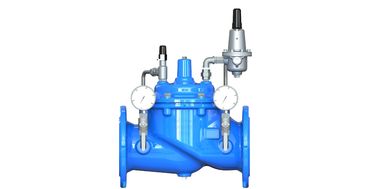

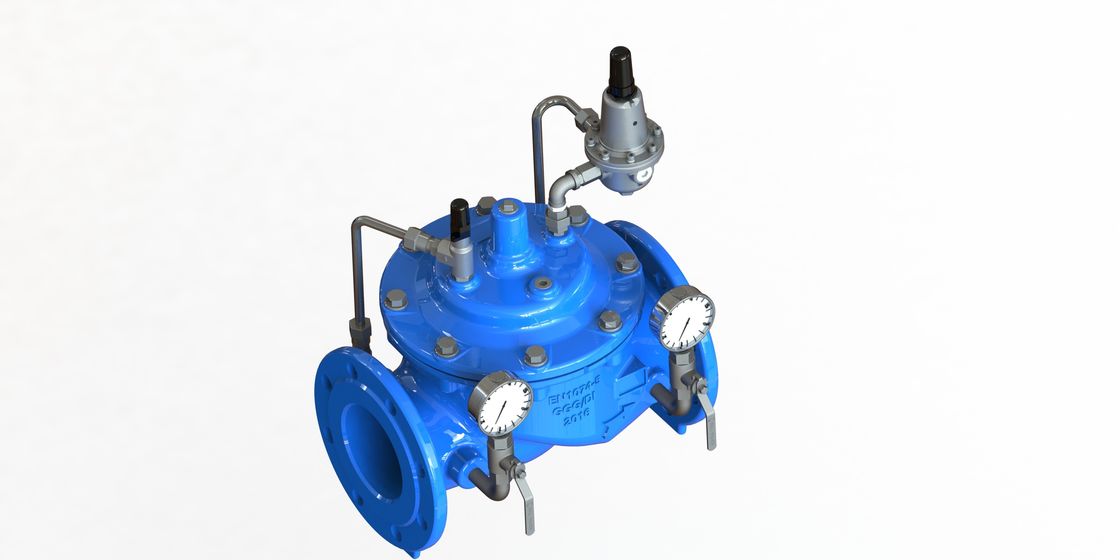

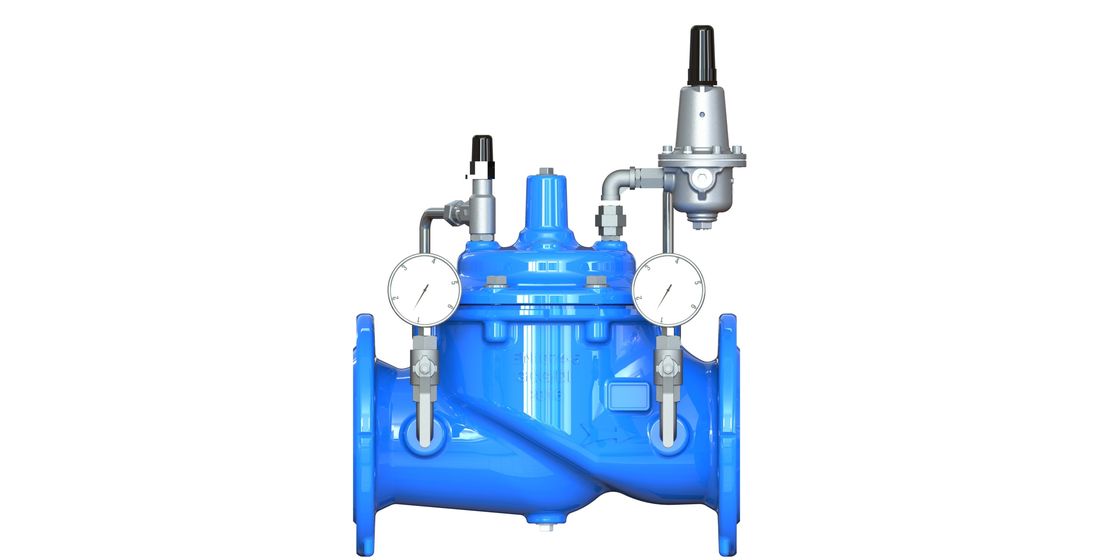

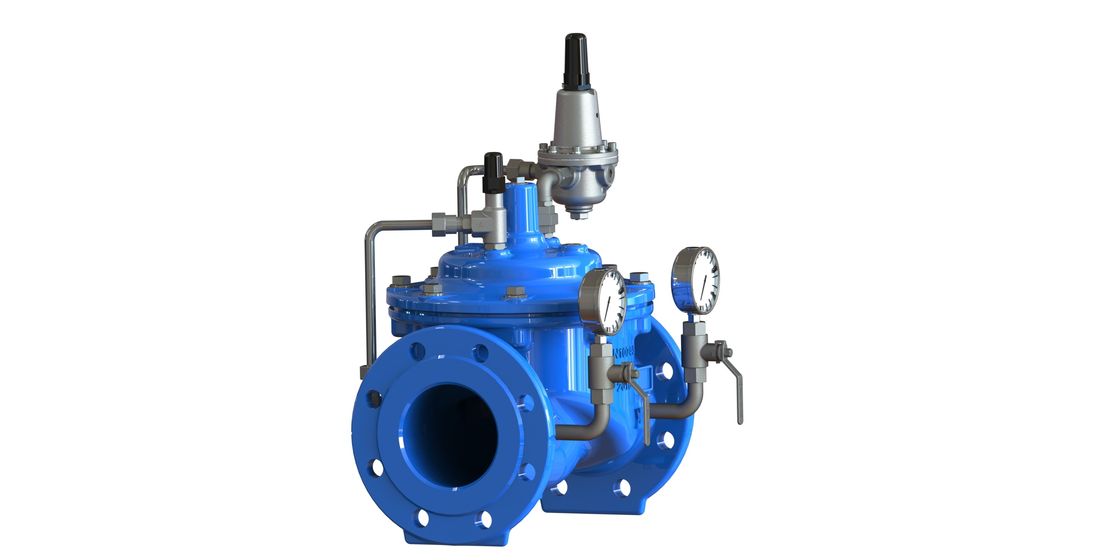

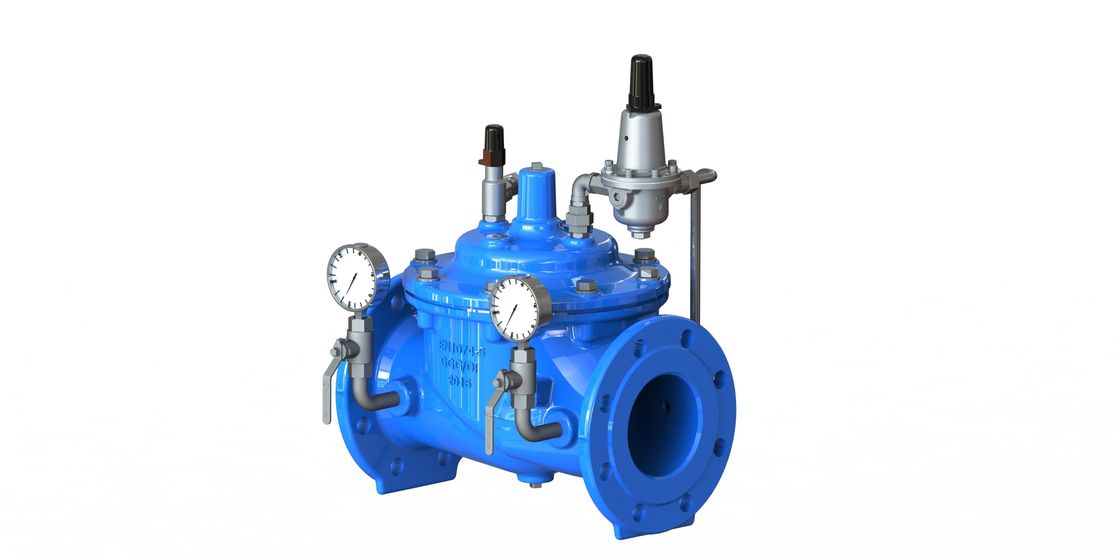

A200 Pressure reducing valve Anti cavitation design Ductile Iron Main Valve SS304 Pilot




Forming Machine Process

1. CNC Lathe Processing

2. High precision CNC machining center processing

3. General lathe processing

4. The machine punch the product parts

5. Cold Forming Molding

6. Welding Assembly


Technical Data:



A200 is a pressure reducing valve which consists of
1. Main valve
2. Reducing pilot-P200
3. Reduce a higher inlet pressure to a stable outlet pressure
4. Regardless of variation of inlet pressure or variation of outlet flow.
6. When downstream pressure exceeds setting, pilot and main valve will close
7. V-port as an accessory. Reduced bore as an option.

Service Fields:

For water system, irrigation system.

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

DN400-DN800
