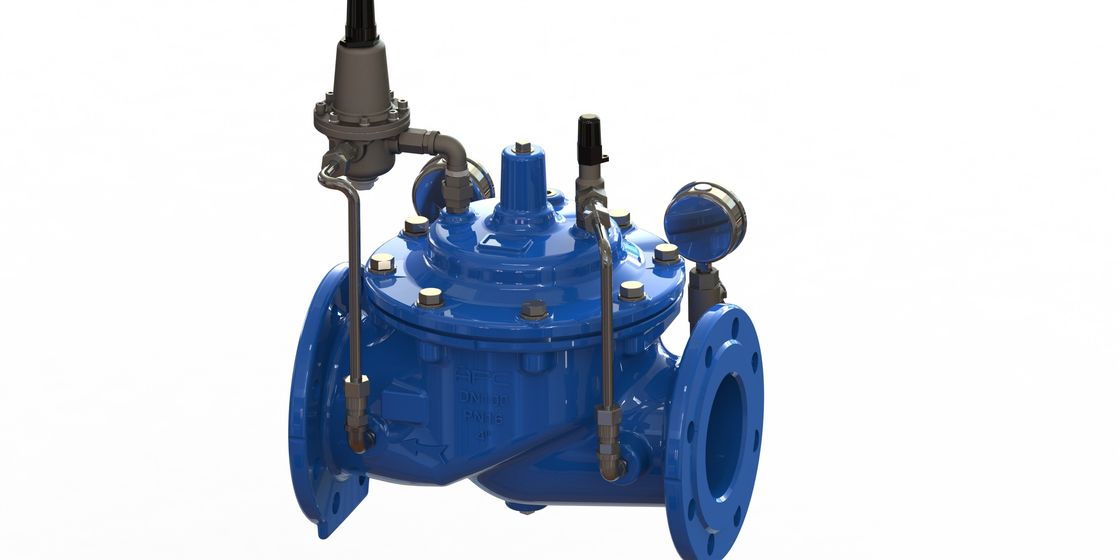

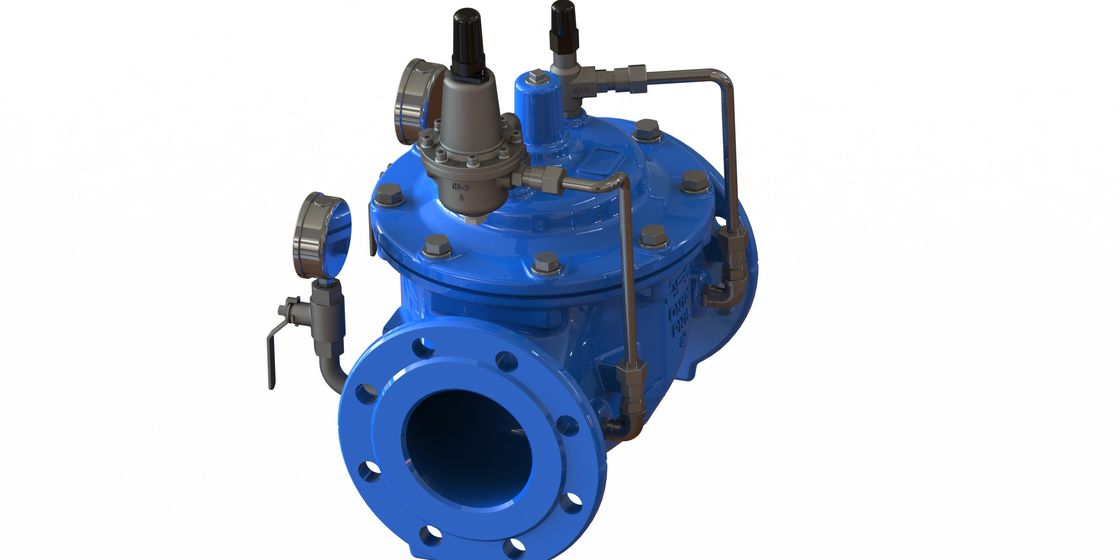

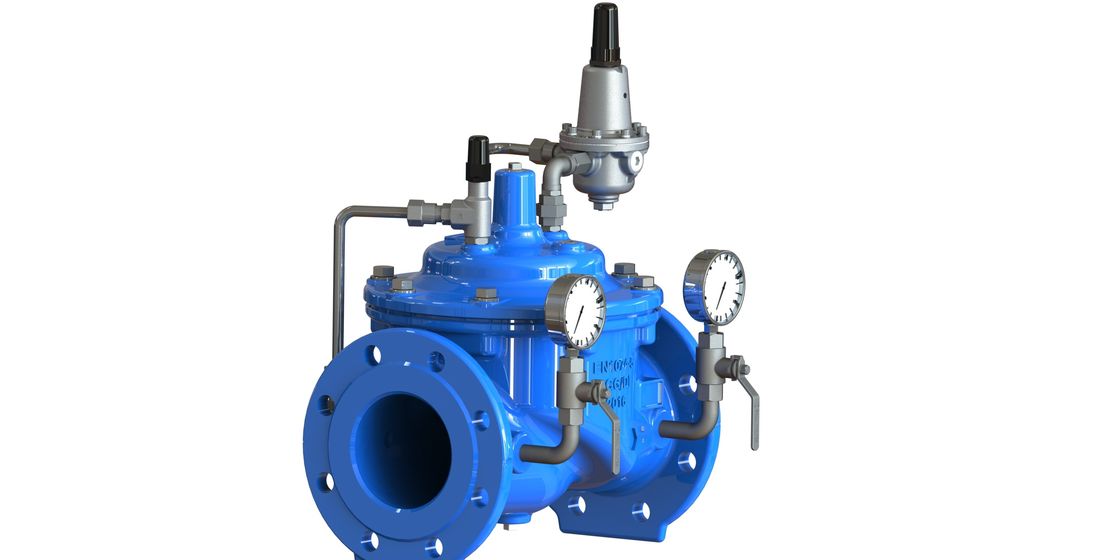

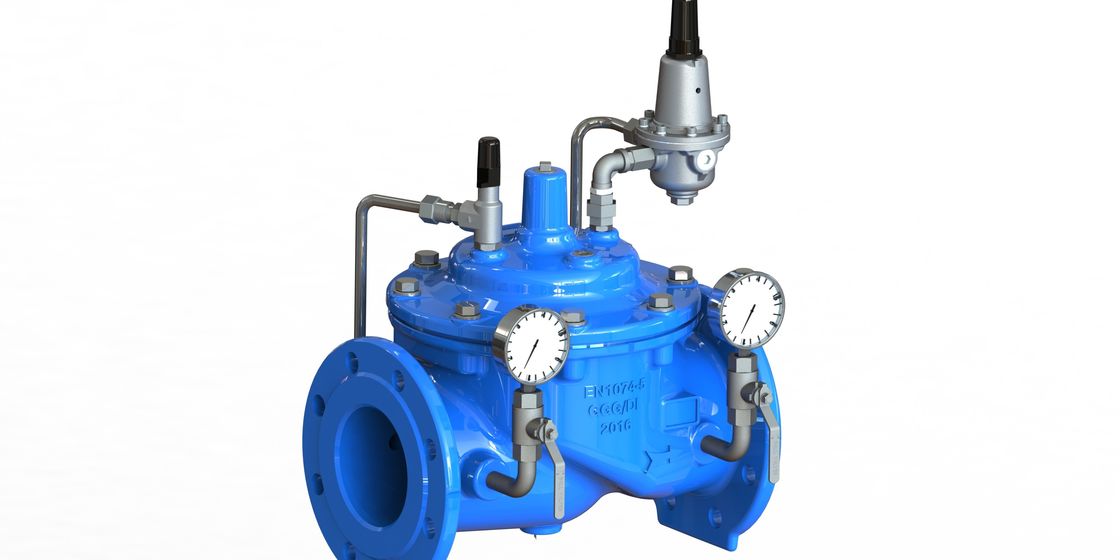

BLUE EPOXY Coated A200 Water Pressure Reducing Valve With SS304 Pilot and Stable Down Stream Pressure
How do we control the quality of machining
1. High-precision CNC lathe processing parts.
2. Advanced Milling Machines
3. UT Inspection to ensure welding quality
4. Weld Polishing
5. 100% Appearance & Size Inspection online (thickness, roundness, etc.)
6. Size & Appearance Shaping
Feature:
• Safe operation, no energy supply needed
• Robust and reliable
• Constant downstream pressure in water supply
• Low head loss in fully open position.
Description:
A200 is a pressure reducing valve which has a 2-way pilot(creating a minimal differential in open position . The 2-way pilot can maintains a preset downstream pressure, regardless of upstream pressure or flow rate fluctuation and can control the water in upper chamber to regulate the outlet pressure.
Service Fields:
For water system, irrigation system.
Technical Data:
| Size | DN50-DN800 |
| Working Temperature | - 10C- 80C |
| Flange | AISI B16.1 Or PN16 |
| Flow Media | Clean Water |
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1
Materials And Dimension
DN50-DN350
| No. | Part Name | Material | Standard |
| 1 | Body | Ductile Iron | GJS500-7 |
| 2 | Seat | Stainless Steel | AISI304/316 |
| 3 | O-ring | Rubber | NBR |
| 4 | O-ring | Rubber | NBR |
| 5 | Bolt | Stainless Steel | A2/A4 |
| 6 | Washer | Stainless Steel | A2/A4 |
| 7 | Bonnet | Ductile Iron | GJS500-7 |
| 8 | Bush | Bronze | C61900 |
| 9 | Spring | Stainless Steel | AISI304/316 |
| 10 | Caulking Nut | Stainless Steel | A4 |
| 11 | Diaphragm | Nylon Reinforced rubber | EPDM+Nylon Fabric |
| 12 | Fixing holder | Ductile Iron | GJS500-7 |
| 13 | Disc Holder | Ductile Iron | GJS500-7 |
| 14 | Seal | Rubber | EPDM |
| 15 | Seat Retainer | Stainless Steel | AISI304/316 |
| 16 | Stem | Stainless Steel | AISI304/316 |
| 17 | Plug | Stainless Steel | AISI304/316 |
| 18 | Screw | Stainless Steel | A2/A4 |
| 19 | Plug | Stainless Steel | A2/A4 |
| 20 | Washer | Stainless Steel | A2/A4 |
| DN | Model Code | L | ΦD | ΦK | H | N-Φd | ΦB | ||||||||
| PN10 | PN16 | PN25 | PN10 | PN16 | PN25 | PN10 | PN16 | PN25 | PN10 | PN16 | PN25 | ||||
| 50 | A900-0050 | 230 | 165 | 165 | 165 | 125 | 125 | 125 | 177 | 4-Φ19 | 4-Φ19 | 4-Φ19 | Φ99 | Φ99 | Φ99 |
| 65 | A900-0065 | 290 | 185 | 185 | 185 | 145 | 145 | 145 | 202 | 4-Φ19 | 4-Φ19 | 8-Φ19 | Φ118 | Φ118 | Φ118 |
| 80 | A900-0080 | 310 | 200 | 200 | 200 | 160 | 160 | 160 | 219 | 8-Φ19 | 8-Φ19 | 8-Φ19 | Φ132 | Φ132 | Φ132 |
| 100 | A900-0100 | 350 | 220 | 220 | 235 | 180 | 180 | 190 | 243 | 8-Φ19 | 8-Φ19 | 8-Φ23 | Φ156 | Φ156 | Φ156 |
| *125 | A900-0125 | 400 | 250 | 250 | 270 | 210 | 210 | 220 | 243 | 8-Φ19 | 8-Φ19 | 8-Φ28 | Φ156 | Φ156 | Φ156 |
| 150 | A900-0150 | 480 | 285 | 285 | 300 | 240 | 240 | 250 | 333 | 8-Φ23 | 8-Φ23 | 8-Φ28 | Φ211 | Φ211 | Φ211 |
| 200 | A900-0200 | 600 | 340 | 340 | 360 | 295 | 295 | 310 | 428 | 8-Φ23 | 12-Φ23 | 12-Φ28 | Φ266 | Φ266 | Φ274 |
| 250 | A900-0250 | 730 | 405 | 405 | 425 | 350 | 355 | 370 | 478 | 12-Φ23 | 12-Φ28 | 12-Φ31 | Φ319 | Φ319 | Φ330 |
| 300 | A900-0300 | 850 | 460 | 460 | 485 | 400 | 410 | 430 | 538 | 12-Φ23 | 12-Φ28 | 16-Φ31 | Φ370 | Φ370 | Φ389 |
| *350 | A900-0350 | 980 | 520 | 520 | 555 | 460 | 470 | 490 | 550 | 16-Φ23 | 16-Φ28 | 16-Φ34 | Φ429 | Φ429 | Φ448 |
DN400-DN800
